Green House Omega Profile Light Gauge Roll Formed Machine
Green House Omega Profile Light Gauge Roll Formed Machine is used to produce the furring channels, the ceiling batten channel, the roofing batten channel for housees. Furring Channel, Roof Ceiling Batten Roll Forming Machine can work at the speed of 35 meters per minute, with servo motor tracking cutting. Machine body is pillar structural, with safety protection cover. There are two encoder to measure the length of the cutting productus, PLC is world famous PLC system. Whole ceiling batten, roofing batten machine is including below parts: 2 tons manual decoiler, leveling system, the main roll forming machine and tracking cutting system, and 2 sets output receiving table.
Specifications
| 1. | Power requirement
| Type | 380v/3ph/50hz |
|
|
|
| Main Motor power | 5.5kw |
|
|
|
| Cutter power | 5.5kw+2.3kw |
|
| 2. | Forming speed(m/min) | 0-30m/min max | Not include the time of cutting | |
| 3. | Forming stations | 12 stations |
| |
| 5. | Material of rollers | CR12 |
| |
| 6. | Thickness of structure | 30mm |
| |
| 7 | Forming shaft diameter(mm) | 70 |
| |
| 8 | Drive | Gear box |
| |
| 9 | Type of cutting | Hydraulic cutting |
| |
| 10. | Control system | PLC xinjie |
| |
| 11. | Install dimension(depend on the final design) | 4.8m×0.6m×1.2m | Without panel length | |
| 12. | Total weight (Approx) | 2.3T | Depend on final design | |
| 13. | Screen | Text screen /touch screen | ||
Components
| NO | Name | Unit | Qty |
|
| 1 | Man-made decoiler | set | 1 |
|
| 2 | Feeding Table | set | 1 |
|
| 3. | Forming Rollers | set | 1 |
|
| 4. | Hydraulic cutting | set | 1 |
|
| 5. | Profile Discharger | set | 1 |
|
| 6. | Electric Control system | set | 1 |
Brake down and so on (6)Power supplier 380V 50Hz 3phase |

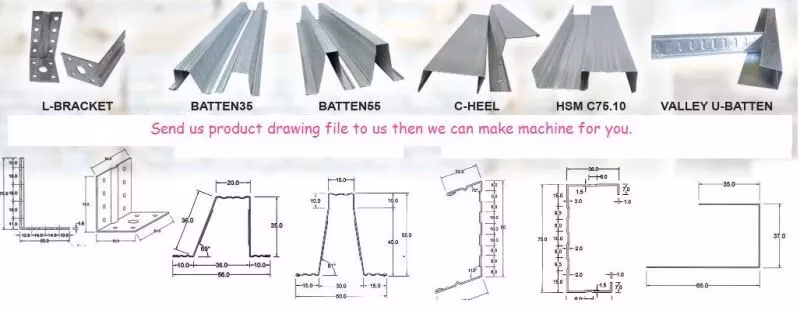

Photo for Green House Omega Profile Light Gauge Roll Formed Machine
ABOUT US:
More Products for Your Choose:
FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made within 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
