The advantages of the film

1.The film greenhouse is most economical and practical greenhouse type. Ti has the characteristics of lowest cost and complete specifications.
2.Durable: scientific process, simple processing technology, easy to understand operation, no need for equipment, handmade, raw materials from a wide range of origin.



3.With good drip-resistance, weather resistance, light transmittance and heat preservation, anti-fog effect can be maintained for 2-4 months, aging resistance life can be up to 12-18 months,

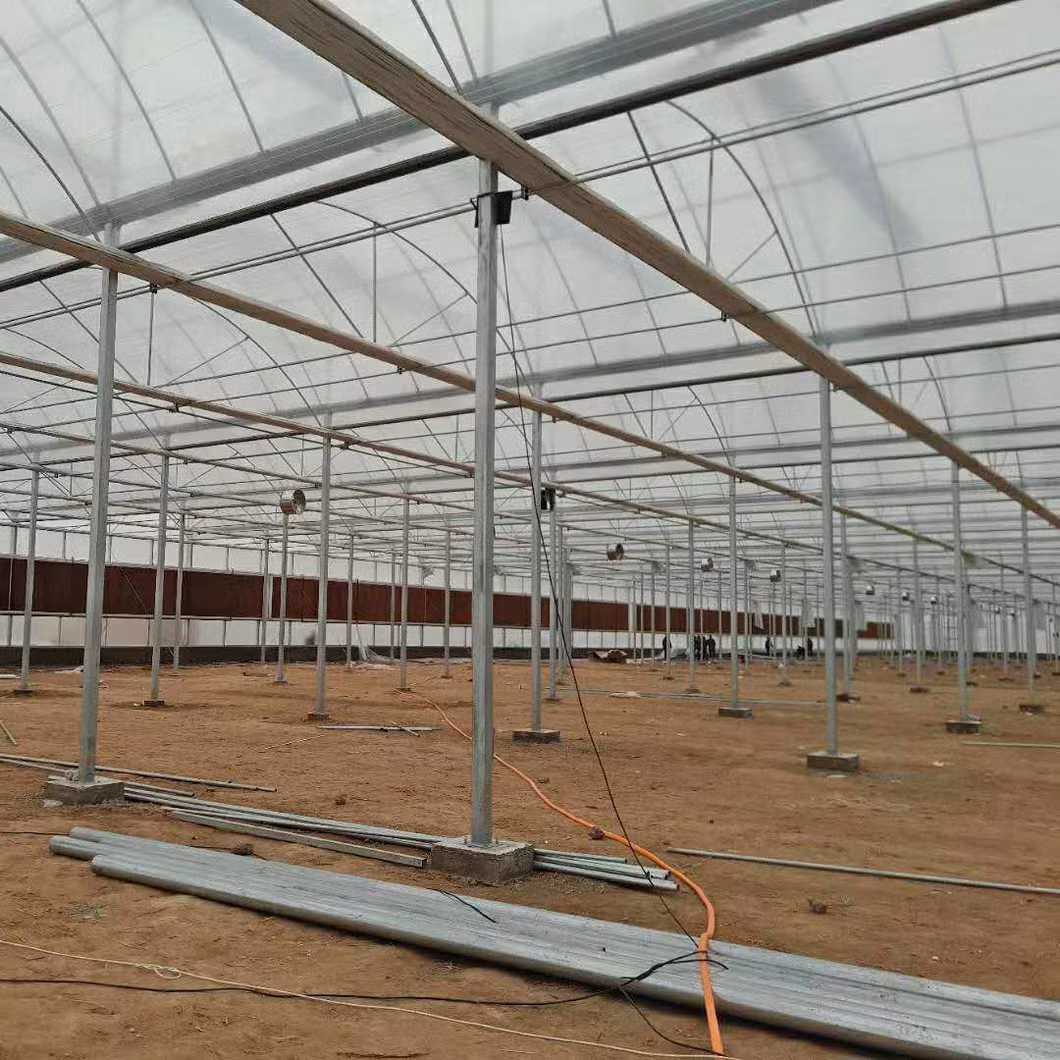

The skeleton materials of the greenhouse is made by galvanized steel materials, connected by galvanized and anti-rot bolts and screws, no welded point. And the Greenhouse can be used for exhibition, seed-breeding, flower or vegetable market or mall, ecological restaurant, teaching or scientific research, etc.

Advantages of hot-dip galvanized steel frame
The skeleton surface using plastic spraying and hot dip galvanized anticorrosion process, the arch has good anticorrosion, but also has beautiful, because the appearance of the arch is very beautiful and clean. In addition, the use of high reflective spray coating, together with the rectangular side of the reflective surface is larger, so that the illuminance in the greenhouse engineering than the ordinary greenhouse is about 10-15% high.



construction process:

 1. Survey the site and do civil engineering work

2. Set up columns, install gutter gutters, and reserve U-bolts for later installation of arch rods. In particular, the thickness of the gutters must reach the standard, so as not to affect the compressive capacity of the whole greenhouse.

3. Build the skeleton of the internal greenhouse.

4. Install the shading column outside the shed, the shading arch beam and the beam. Pay attention to the arch beam here, and keep a certain slope, so that the snow on the top is small and the structure is firm.

5. After the skeleton is installed, install the external shading diagonal support and external shading transmission system of the greenhouse.

6. Install fan water curtains and temperature control equipment.

7. Greenhouse film, film must be selected high quality Po film, long service life, greatly saving manpower and financial resources.

8. Install the greenhouse control system.



Greenhouse Systems

Internal shading

•Effectively reduce the greenhouse light, while reducing the temperature of crops and air. •Unique thermal radiation barrier
materials outside greenhouse emission, can keep the curtain under the heat is not lost. •Close the sunshade curtain will increase
the humidity indoor temperature rapidly.

Outside shading

•In summer, the solar radiation heat load is too high,when the external shading system is used, the indoor temperature can be controlled to be only 1º Chigher than that of the outdoor room in a well ventilated greenhouse due to the blocking of most of the solar radiation into the greenhouse.

Ventilation System

•Top ventilation: All the middle spans have two electric roll up motors and both of side spans have one electric roll up motor.
Side ventilation: Both side have two electric roll up motors

Cooling Fan

1) Hot-dip galvanized plate adopt 275g/m2 galvanized layer, not rust.
2) 95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality ,utmost cost-effective globally
3) Complete CNC production line, the accuracy of assembling holes is 100%, easy to assemble, quality assured.
4) Wall-Mounting fan , easy installation and maintenance
5) Belt Drive, Big airflow

Cooling Pad

Temperature dropping process is completed in cooling pad paper. There is a layer of thin water film on the surface of wave-shaped fibre paper. When dry hot air is pumped by cooling fan through cooling pad paper, water in film will absorb heat in the air and vaporize, take a lot heat away. So air temperature which is through cooling pads dropped. Cool wet air enters into room and was mixed with hot turbid and was discharged out of room through cooling fan.

Water treatment

•For special irrigation water requirements for rare flowers and plants, which can fully meet the requirements of irrigation water quality meeting to the standards of drinking water.
•We also can tailor the most appropriate water treatment system according to the customer's requirements.

Spray Irrigation System
It can improve water utilization efficiency and save irrigation water.

To create a good living environment for crops, promote crop growth and development, to achieve the purpose of increasing production.

Sprinkler irrigation can be combined with fertilizer and pesticide application, but also can save a lot of labor.

Sprinkler irrigation pipeline to transport water, without irrigation ditches and ridges in the field,

Heating system

Heating System of Greenhouse refers to a set of suitable heating facilities chosen to meet the heating demands, consisting of heating source, heat-radiating facilities, heat-transmitting facilities.

Heating equipment generally have coal-fired boilers, gas boilers, electric heating equipment.



Production workshop
Modern equipment
Each process is strictly controlled to prevent unqualified products from flowing into the next process, so that the entire production process is a virtuous circle

 Qingzhou Xinhe Greenhouse Horticulture Co.,Ltd located in Shandong Province,has focused on greenhouse designing, manufacturing and construction for over 16 years.

In the passing years, Xinhe Grennhouse helps our customers from China and overseas markets build hundreds of different types of greenhouses for vegetable planting, flower planting and many other uses.

Besides the mainland market, Xinhe Greenhouse is aggressive enough to extend our overseas markets.

Wecome to our factory to have a visit and any inquiry.
Q1:Are you a trading company or a manufacturer?
A: We are a factory. Our factory produces all items related to the greenhouse, so we provide the best price,
Q2: Do you provide samples? Is it free or extra?
A: Yes, we can provide samples free of charge, but we don't bear the freight.
Q3: How to get a quotation for the greenhouse?
A: Please let us know how many greenhouses are needed? What will be grown in the greenhouse? So that we can suggest related systems
Q4: How should I choose a greenhouse system?
A: Please let us know where the greenhouse is (temperature, wind speed)
Q5: How to assemble the greenhouse when purchasing?
A:We have professional after-sales service engineers who will provide planning drawings and installation manuals. Please send a message for specific details.
