Basic Info.
Model NO.
NT-PG
Cover Material
Film
Layer
Single
Application
Agricultural Growing
Material
Hot-Galvanized Steel Frame Construction
Environmental System 1
Cooling System/Irrigation System/Ventilation/etc.
Environmental System 2
Shading System/Heating System/Blackout System
Irrigation System
Drip Irrigation/Sprinkler Irrigation/Mist
Growing System 1
Nft Hydroponic System
Growing System 2
Dwc Hydroponic System
Growing System 3
Dutch Bato System
Growing System 4
Rock Wool Growing System
Growing System 5
Aeroponics System
Growing System 7
Ebb Hydroponics Bed
Growing Plant 1
Strawberry/Flower/Cherry/Fruit
Growing Plant 2
Pepper/Tomato/Cucumber/Vegetable
Growing Plant 3
Herb/Vanilla
Growing Plant 4
Medical Plant
Transport Package
Standard Export Package
Specification
8/9/10M*N spans*30/40/50/60M
Trademark
NOONTY
Origin
China
HS Code
9406000090
Production Capacity
10000000m2/Year
Product Description
| Width | 6 meters/8 meters/9 meters/10 meters ot Customized |
| Arch Spacing | 0.8 meters to 2.5 meters or Customized |
| Length | 20 meters to 100 meters |
| Roof Height | 2.5 meters to 6.5 meters |
| Wind Load | 0.3 KN/M2 to 0.5 KN/M2 |
| Snow Load | 0.3 KN/M2 to 0.5 KN/M2 |
| Crop Load | Max 20KG/M2 |
| Voltage | 220V, 1 Phase, 50HZ/ 380V, 3 Phase, 50HZ/Customized based on local |
Frame system of Agricultural Film Greenhouse:
1-Hot dip galvanized steel framework,275/m2,15 year warranty;
2-Stable and Strong Structure.
3-Fully fabricated in factory, no welding.
4-Excellent anti-corrosion effectiveness.
5-Customized design is available.
6-Venlo Style,Suitable to load snow and water drainage.

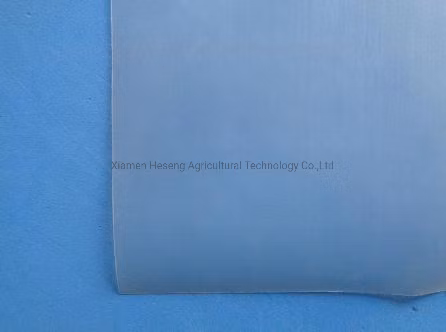

Covering of Agricultural Film Greenhouse:
1-Name: PE/PO Plastic Film
2-Thickness: 150micron,180micron,200micron;
3-Anti-drip, Anti Fog,UV Treated;
4-Transparent ,white,etc. are optional;
2-Thickness: 150micron,180micron,200micron;
3-Anti-drip, Anti Fog,UV Treated;
4-Transparent ,white,etc. are optional;
Ventilation of Agricultural Film Greenhouse:
1- On 2 sides,gable end or roof;
2- By manual or electric;
3- Insect screen will be under the ventilation.
Cooling Pad&Fan System of Agricultural Film Greenhouse:
1-Cooling fans and cooling pads are popular for cooling;
2- Humidity rate is increased and temperature is down by 5-10ºC;
3-The cooling fans is on one wall while the cooling pad in the opposite.
4-Circulation fan is optional;
Hydroponics Growing System: 1-Different hydroponics system is optional;
2-DWC,NFT,Medium,etc is optional;
3-For tomatoes,cucumber,chilly, lettuces,herbs,etc;
4-Efficient,Healthy,eco-friendly.
Greenhouse Environment System for Optional:
1-Inside Shading System;
2-Outside Shading System;
3-Heating System;
4-CO2 System;
5-Lighting System;
6-Intelligent Controlling System.
