Basic Info.
Type
Axial Fan
Electric Current Type
AC
Mounting
Wall Fan
Certification
ISO, CCC, SGS
Transport Package
Standard Export Packing
Specification
730*560*160
Trademark
Gofee
Origin
Heze
HS Code
84148090
Production Capacity
25000PCS/Year
Product Description

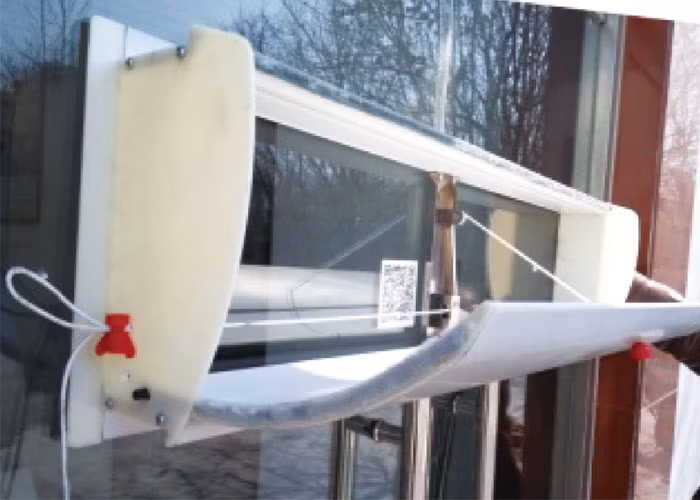

butterfly type air inlet window wall mounted plastic ventilation barn greenhouse/poultry /livestock
DESCRIPTION
Gofee butterfly type air inlet for swine market. Its curved blades direct air along the ceiling for proper air mixing and minimizes condensation and freeze-up. Great for minimum to maximum ventilation when you need precise control of air movement. Barn air inlet has a totally insulated housing ABS engineer plastic and PVC insulated filled lids means no exposed insulation.
Company Profile:
Heze Gofee Motor Co., Ltd was established in 2004, dedicating to researching, producing and selling equipment for environmental control system.
Main products are fiberglass wall fan, roof fan, cooling pad, air inlet, electrical controller, reducer etc.
In October of 2016, new factory with 20000 s.q.m area was put into use. In order to ensure the product quality, our company has set up a motor workshop, mainly producing fan motor; FRP workshop, specializing in the production of fan casing; fan blade workshop, professional to ensure the balance of fan blades; and we have professional automatically fan installation workshop. At the same time, in order to provide customers with better service, a professional ventilation program design team is available any time, focusing on the design of ventilation plan for poultry farm, greenhouses, factories and other places.
Heze Gofee has got ISO9001 quality system certification, domestic CCC certification, EU CE certification. Fans are certified by Bess Lab in U.S.A.
At the forefront of industry development, we will make positive contributions to promoting industry development and technological progress.
Please feel free to contact us!
DESCRIPTION
Gofee butterfly type air inlet for swine market. Its curved blades direct air along the ceiling for proper air mixing and minimizes condensation and freeze-up. Great for minimum to maximum ventilation when you need precise control of air movement. Barn air inlet has a totally insulated housing ABS engineer plastic and PVC insulated filled lids means no exposed insulation.
Features
- Helps to direct the required amount of airflow into the correct place in the barn, controlling accurately the inlet air flow volume
- Used in conjunction with fans operated by a winch motor controlled by a computerised ventilation controller
- Low energy requirement
- High level insulation
- Long lifespan material made of ABS plastics, PVC
- Quick & easy to clean
- All weather resistant
- Making the livestock barn free
- Anti corrosive, anti aging, no deforming
- Resist high temperature and cold, high intensity, sealing tightly, double layer temperature preservation.
| Model | GF-FC1000 | GF-FC1100 | GF-FC1700 | GF-FC2000 | GF-FC2200 | GF-FC3400 | |
| Material | ABS engineer plastic and PVC plastic-steel material | ||||||
| Opening mode | Driving opening | ||||||
| Window size LxW(mm) | 730x340x160 | 800x340x160 | 1210x340x160 | 730x560x160 | 800x560x160 | 1210x560x160 | |
| Installation size LxW(mm) | 670x260 | 740x260 | 1150x260 | 670x500 | 740x500 | 1150x500 | |
| Air flow capacity(m³/h) | 10pa | 1700 | 1865 | 2898 | 3400 | 3730 | 5796 |
| 20pa | 2050 | 2264 | 3650 | 4100 | 4528 | 7300 | |
